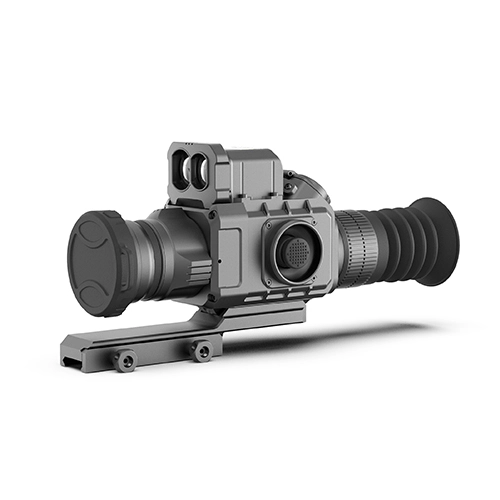

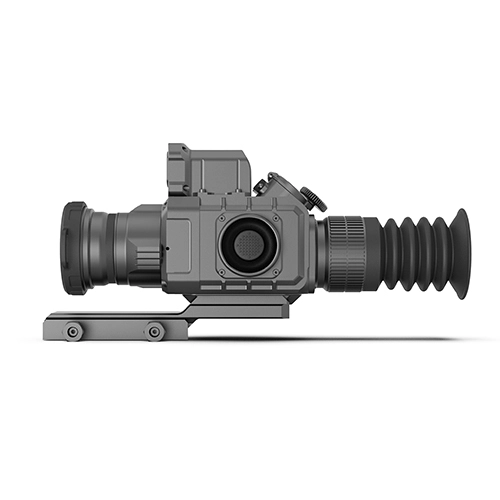

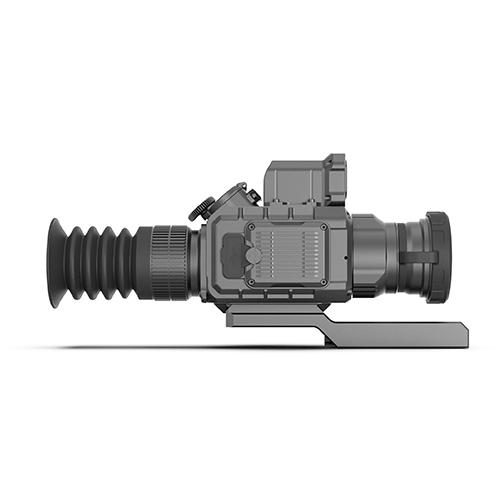

Polaris 650RL

SKU:
- 12μm advanced imaging sensor

- High definition image

- Built-in laser rangefinder (optional)

- IP67 protection range

- 640 high-resolution sensor

- Long lasting operation time

- Wifi and on-board recording
$0.00 $4,609.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    US Address only
    Global address (Non US address)
    Please select the information you wantX
Quantity
-
+
  • Polaris 650RL
  • Polaris 650RL
  • Polaris 650RL
  • Polaris 650RL
  • Polaris 650RL
  • Polaris 650RL
  • Description
  • Specification








Ergonomic design









12μm Advanced Imaging Sensor



The units have high sensitive thermal imaging sensor. This provides Polaris with the perfect detail recognition even when the thermal contrast of the surroundings is low - during the snow, dust, smoke, fog, haze, and other atmospheric obscurants.









IP67 Waterproof Rated



IP67 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.








High Definition Image










Built-in Precise Laser Rangefinder

Reading Up To 1km



Polaris is capable of accurately measuring distance to objects up to 1000 meters away. The Integrated, precise laser rangefinder provides three modes -single time measurement mode, scanning mode and high-humidity mode.



            -Wavelength: 905 nm
            -Max. measuring range: 1000 m
            -Measurement accuracy :± 1m













1200G High Shock Resistance


Polaris features high shock resistance and can be used with rifled hunting weapon for such cartridges as 9.3х64, .30-06, .300, .375. etc, and with smooth-bore and airsoft weapon.









Wifi and on-board recording



Built-in Wi-Fi module allows you to connect the Polaris with mobile units which enables you to receive footage in the real-time mode and save the image/video captured by the device.32 Gb of internal memory provides enough space for recording and taking photos of exciting moments.












Extreme Detection Range


A powerful F35 /1.1 or F50/1.1 objective lens combined with a highly-sensitive thermal imaging sensor provides exceptional detection capabilities.











5 Optional Reticle Types









6 Adjustable Color Palettes



The 6-color palette enhances viewing in varying conditions.








Long lasting operation time



Polaris gives out long lasting operation time.External sources, such as power banks power bank with high-capacity is also capable of increasing the total operation time. 2 pcs of 18650 batteries meet the hunting needs of one night.











More features



High-resolution OLED display

1024×768 high-resolution OLED display offers a crisp, richly contrasted, vividly colored image.



Picture-in-Picture function

Picture-in-picture displays a X2 image at the top-center of the overall field of view for precise zooming on an object of interest.



Selectable reticle

A full complement of digitally displayed reticle solutions ensures quick target acquisition and a richly contrasting sight picture.

Choose from an array of reticle patterns, colors and brightness settings.



5 types of zeroing parameters memorization

Polaris has the function of saving five user's zeroing profiles in the memory (for different types of weapons or ammunition), in each case a different reticle can be applied. In addition, each profile allows zeroing at five different distances. Zoom zeroing support ensures particular zeroing precision.



High image frequency

Due to the high image frequency, it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).



User-Friendly interface

Polaris is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

Polaris Technical Data Sheet
 Model 635R Pro 635RL Pro 650R Pro 650RL Pro
Detector
Type Uncooled Vox
Resolution 640X512
Frame rate 50Hz
Pixel 12μm
Spectral range 8~14μm
NETD ≤ 25mk
Optical Characteristics
Objective lens 35mm/F1.0 50mm/1.1
Magnification 1.5x 2.2x
FOV 12.6°x10° 8.8°x7°
Close-up range 5m
Dioptre adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 6 optional(can be customized)
Start up time Less than 5 seconds
Image enhancement DDE
Contrast and brightness AGC
Online update Both code and GUI resources
Display
Type OLED
Resolution 1024×768
External video WIFI
Storage 32G
Power Supply
Battery 2x18650
External power supply 5V micro USB
Working time with battery 6h
Physical Characteristics
Weight without battery 623g 693g 665g 720g
Size 178*76*83mm 178*76*100mm 188*76*83mm 188*76*100mm
Environmental Compatibility
Water proof IP67
Operating temperature -20℃-50℃
Storage temperature -40℃-60℃
Laser Rangefinder (Optional)
Safety class for laser equipment
according to IEC 60825-1:2014
/ 1 / 1
Measuring range / 5-1000m / 5-1000m
Measurement accuracy / ± 1m / ± 1m
