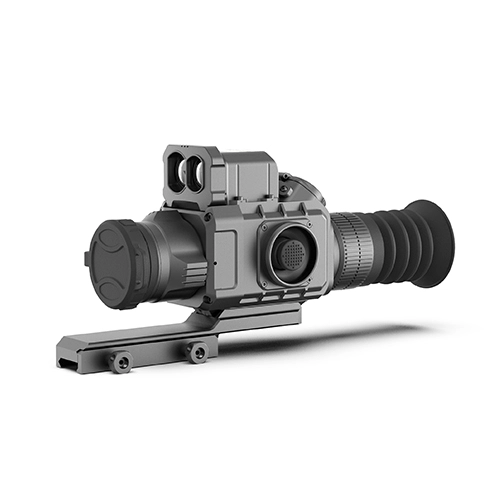

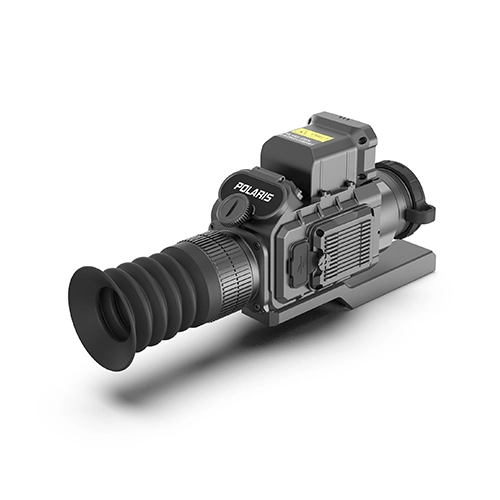

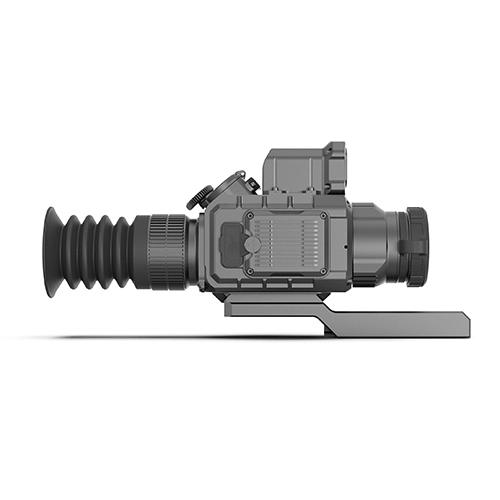

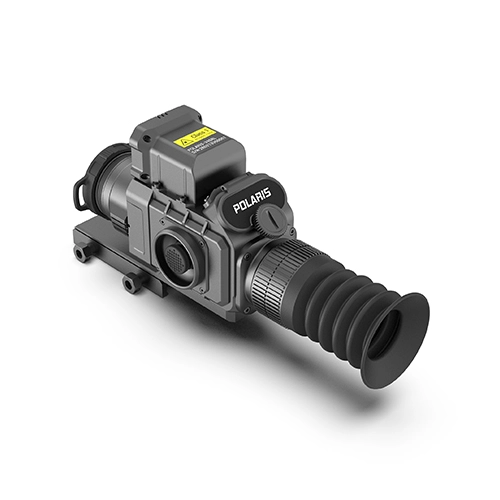

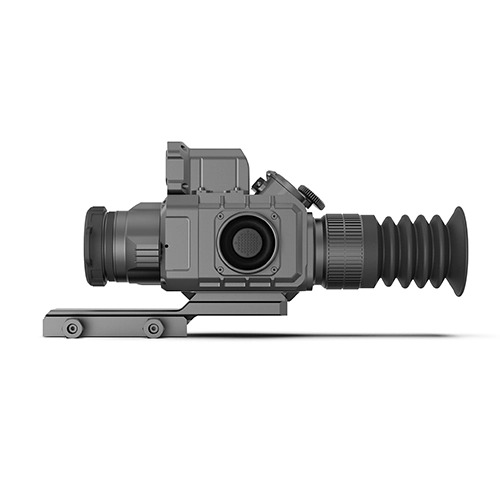

Polaris 335RL

Name: Polaris 335RL
Brand: Conotech
Price: 2780 USD
Availability: InStock

- High sensitive thermal image sensor

- Wifi and on-board recording

- IP67 protection range

- High-resolution OLED display

- Built-in laser rangefinder(Optional)

- 1200G shock resistance

- Long lasting operation time

$2,780.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Specification

Ergonomic design

High sensitive thermal image sensor

The units have high sensitive thermal imaging sensor. This provides Polaris with the perfect detail recognition even when the thermal contrast of the surroundings is low - during the snow, dust, smoke, fog, haze, and other atmospheric obscurants.

IP67

IP67 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Built-in laser rangefinder (Optional)

Polaris is capable of accurately measuring distance to objects up to 1000 meters away. The Integrated, precise laser rangefinder provides three modes -single time measurement mode, scanning mode and high-humidity mode.

-Wavelength: 905 nm

-Max. measuring range: 1000 m

-Measurement accuracy :± 1m

( Safety class for laser equipment according to IEC 60825-1:2014: 1)

1200G shock resistance

Polaris features high shock resistance and can be used with rifled hunting weapon for such cartridges as 9.3х64, .30-06, .300, .375. etc, and with smooth-bore and airsoft weapon.

Wifi and on-board recording

Built-in Wi-Fi module allows you to connect the Polaris with mobile units which enables you to receive footage in the real-time mode and save the image/video captured by the device.32 Gb of internal memory provides enough space for recording and taking photos of exciting moments.

Detection Range

A powerful F35 /1.1 or F50/1.1 objective lens combined with a highly-sensitive thermal imaging sensor provides exceptional detection capabilities.

Multiple palette

The 6-color palette enhances viewing in varying conditions.

Long lasting operation time

Polaris gives out long lasting operation time.External sources, such as power banks power bank with high-capacity is also capable of increasing the total operation time. 2 pcs of 18650 batteries meet the hunting needs of one night.

More features

High-resolution OLED display

1024×768 high-resolution OLED display offers a crisp, richly contrasted, vividly colored image.

Picture-in-Picture function

Picture-in-picture displays a X2 image at the top-center of the overall field of view for precise zooming on an object of interest.

Selectable reticle

A full complement of digitally displayed reticle solutions ensures quick target acquisition and a richly contrasting sight picture.

Choose from an array of reticle patterns, colors and brightness settings.

5 types of zeroing parameters memorization

Polaris has the function of saving five user's zeroing profiles in the memory (for different types of weapons or ammunition), in each case a different reticle can be applied. In addition, each profile allows zeroing at five different distances. Zoom zeroing support ensures particular zeroing precision.

High image frequency

Due to the high image frequency, it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).

User-Friendly interface

Polaris is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

Polaris Technical Data Sheet
Model	335R	335RL	350R	350RL
Detector
Type	Uncooled Vox
Resolution	384×288
Frame rate	50Hz
Pixel	17μm
Spectral range	8-14μm
NETD	≤ 25mk
Optical Characteristics
Objective lens	35mm/F1.1		50mm/F1.1
Magnification	1.9x		2.7x
FOV	10.7°×8.0°		7.5°×5.6°
Close-up range	5m
Dioptre adjustment	-5D-4D
Functions
Zoom	2x/4x/PIP
Palette	6 optional(can be customized)
Start up time	Less than 5 seconds
Image enhancement	DDE
Contrast and brightness	AGC
Online update	Both code and GUI resources
Display
Type	OLED
Resolution	1024×768
External video	PAL、WIFI
Storage	32G
Power Supply
Battery	2x18650
External power supply	5V micro USB
Working time with battery	8h
Physical Characteristics
Weight without battery	618g	688g	650g	720g
Size	1807683mm	18076100mm	1967683mm	19676100mm
Environmental Compatibility
Water proof	IP67
Operating temperature	-20℃-50℃
Storage temperature	-40℃-60℃
Laser Rangefinder (Optional)
Safety class for laser equipment according to IEC 60825-1:2014	/	1	/	1
Measuring range	/	5-1000m	/	5-1000m
Measurement accuracy	/	± 1m	/	± 1m
