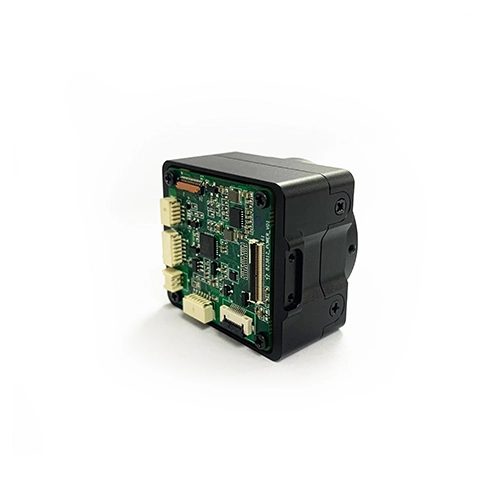

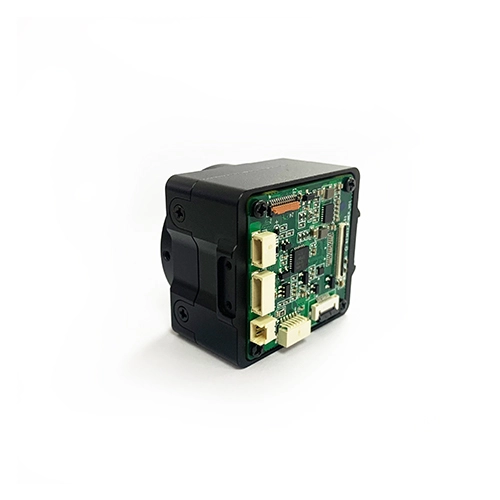

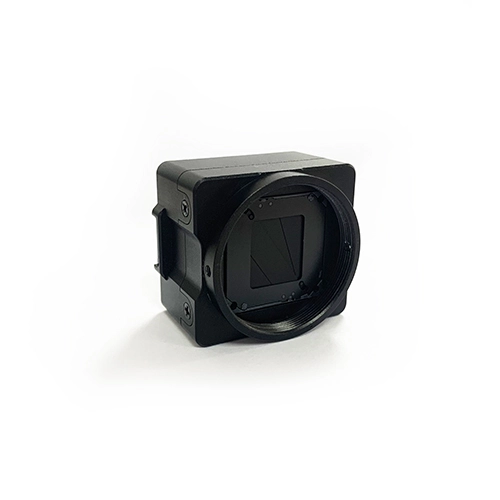

AXE3-12Asi

Name: AXE3-12Asi
Brand: Conotech
Availability: OutOfStock

- Specially designed for rifle scope, monocular and OEM

- Small size and lightweight

- Extremely low power consumption

- Direct Oled output,optional wifi board available

- Support customized interface

$0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AXE 3 Specification
Module	12 Asi
Detector
Resolution	384×288
Pitch	12um
Spectral range	8-14μm
NETD	≤ 25mk
Image Processing
Frame rate	50/60Hz optional
NUC	shutter calibration
Digital zoom	×2,×4,PIP
Palette	10 optional(can be customized)
Image flip	4 optional
Start up time	less than 8 seconds
Start up image	Can be customized
Menu and information	GUI(Can be customized)
Image enhancement	DDE
Contrast and brightness	DDE
Online update	Both code and GUI resources
Image Presentation
Analog video	Pal/NTSC optional
Digital video	Standard 0.39" MicroOled and BT656
Module Control
Communication	RS232/usb/5 keys optional
Power Supply
Required voltage	3.6-12VDC
Power consumption	less than 1.45W including OLED
Environmental Compatibility
Operating temperature	-40℃-60℃
Storage temperature	-45℃-70℃
Physical Characteristics
Size	39×36.5×26.1mm
Weight	40g (without lens)
